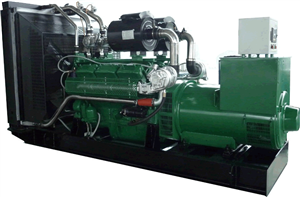

90kW Lantoky® Machine Genset

Recommended Operation Conditions

1. CH4 Content of Gas ≥45%
2. Gas Pressure ≥ 3 kPa
3. Calorific Value ≥ 16 MJ/m³
4. H2S Content of Gas ≤ 20 mg/m³
5. Total Sulphur Content of Gas ≤ 460 mg/m³
6. Altitude ≤ 4,000 m
7. -25℃ ≤ Ambient Temperature ≤ +50℃

Advantages & Features

1. Our 90kW biogas genset is equipped with reliable Cummins engine, Mecc Altea alternator and DEIF controller
2. This home methane gas genset enjoys advanced lean-burn technology
3. Prompt dynamic response similar to diesel genset
4. Excellent power generation efficiency
5. This methane power generator is adaptable for a wide range of gas pressure
6. Humanized manual, semi-auto and full-auto operation modes

Specification & Configuration

Model AMC90GF-PZ
Prime Power 90 kW (112.5 kVA)
Rated Voltage 230/400 V
Rated Current 162.4 A
Rated Frequency 50 or 60 Hz
Power Factor 0.8
Gas Consumption 0.50 Nm³/kWh
Weight 1,200 kgs
Overall Size (L × W × H) 2,240 × 1,000 × 1,400 mm

Engine

Brand Cummins
Model 6BT
Type 6-cylinder, 4-stroke, turbocharged
Displacement 5.9L
Compression Ratio 10.5
Ignition Electric control, independent ignition
Fuel Control Lean-burn, closed-loop control
Speed Control Electric control
Rated Speed 1500rpm
Conversion Efficiency 36.1%

Alternator

Brand Mecc Altea
Model ECP34-1L/4
Type of Excitation System Brushless with AVR
Connection Type 3-Phase, 4-Line
Conversion Efficiency 92.4%

Controller

Brand DEIF
Model AGC222
Type Manual control, semi-auto control or full-auto control

Others

Pedestal, radiator, air filter, muffler, battery and gas pressure reducer are included.
Soundproof equipment, engine oil, coolant and output cable are not included.

All specifications are subject to change without prior notice.
