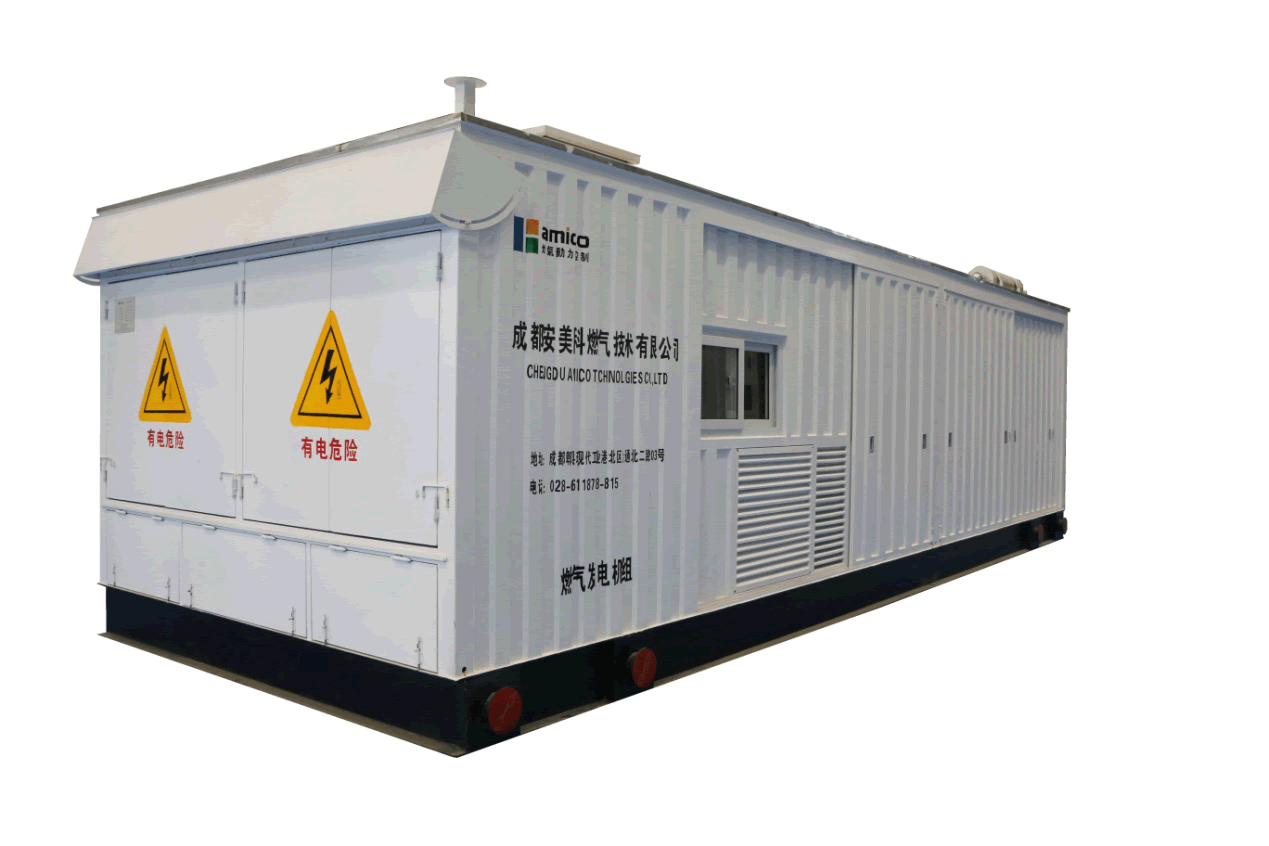

500kW Coal Mine Gas Genset |
|
| Model | AMC500GF4-RM |
| Prime Power | 500 kW (625 kVA) |
| Rated Voltage | 230/400 V |
| Rated Current | 902.1 A |
| Rated Frequency | 50 or 60 Hz |
| Power Factor | 0.8 |
| Gas Consumption | 1.18 Nm³/kWh |
| Weight | 9,500 kgs |
| Overall Size (L × W × H) | 6,058 × 2,438 × 2,591 mm |
Engine |
|
| Brand | MTU |
| Model | 8V165 |
| Type | 8-cylinder, 4-stroke, turbocharged |
| Displacement | 31.65 L |
| Compression Ratio | 11 |
| Ignition | Electric control, independent ignition |
| Fuel Control | Lean-burn, closed-loop control |
| Speed Control | Electric control |
| Rated Speed | 1500 rpm |
| Conversion Efficiency | 41% |
Alternator |
|
| Brand | Mecc Altea |
| Model | ECO40-1.5L/4 |
| Type of Excitation System | Brushless with AVR |
| Connection Type | 3-Phase, 4-Line |
| Conversion Efficiency | 94.2% |
Controller |
|
| Brand | DEIF |
| Model | AGC222 |
| Type | Manual control, semi-auto control or full-auto control |
Others |
|
| Pedestal, radiator, air filter, muffler, battery and gas pressure reducer are included. | |
| Soundproof equipment, engine oil, coolant and output cable are not included. | |
